Making ‘Dive into Color’

Guest post by Olivia Vane

‘Dive into Color’ is an interactive timeline for exploring the Cooper Hewitt collection by colour/colour harmony and time. It is exhibited in ‘Saturated: The Allure and Science of Color’ 11 May 2018 – 13 Jan 2019.

Since spending time at Cooper Hewitt last year on a fellowship, I returned to London where I’m a PhD student at Royal College of Art (RCA) in Innovation Design Engineering supervised by Professor Stephen Boyd Davis. At Cooper Hewitt, I developed a prototype timeline tool for visualising the museum collection by tags.

This post describes further work on that prototype, shifting the tool to exploring the collection by colour. As a curator explained: “[visualising by] colour, I think, is useful for the purposes of the study of the taste for different colours, but it’s also a more interesting exercise for the public just to be able to do and get pleasure out of.” Colour is enjoyable – it’s eye-catching and vibrant – and it offers a visual, intuitive way to explore a digitised collection without needing specialist knowledge. With a design collection like Cooper Hewitt’s, tracing colour through history is also interesting for looking at fashions and innovation in colour technology.

I’ve been asked a few times recently what my process is for designing visualisations. So in this post I’m going to step though the early prototypes and retrace my design decisions. Along the way, I will talk over practical points for working with colour (and colour harmonies!) in collection data, and working between digital and artist colour systems.

Previous colour-collections visualisations
Colour has previously been used both as a facet for search and for visualising collections. Geoff Hinchcliffe’s ‘Tate Explorer’ offers colour as a search facet paired with a timeline. This prototype from the Swedish National Heritage Board (write-up forthcoming) combines colours and tags for exploring a fashion collection. Richard Barrett-Small’s ‘ColourLens’ searches over Rijksmuseum and Walters Art Museum data by colour with a graphic for each item visualising its colour proportions. And Google Arts & Culture’s ‘Art Palette’ is a search engine that finds artworks based on a chosen colour palette.

Collections visualised by colour include the Library of Congress, where Laura Wrubel created this tool for overviewing the colour palettes of objects over a collection and Jer Thorp visualised the colour names present in the titles of works. Also using Cooper Hewitt data, Rubén Abad created this visualisation of the colours present by decade in Cooper Hewitt’s objects. Lev Manovich has visualised artworks, for example Mondrian and Rothko paintings, by colour characteristics including hue and saturation. Everardo Reyes visualised Paul Klee’s paintings by hue. And Brian Foo’s visualisation of the New York Public Library digitised collection has an option to organise items by colour.

I was interested to explore colour alongside the time dimension. And since Cooper Hewitt was preparing for an exhibition, ‘Saturated’, focusing on colour theory and design, I was intrigued to see if I could trace colour harmonies across the collection.

Colour harmonies are combinations of colours that are pleasing to the eye. The relative positions of colours in a colour wheel can be used to describe different harmonies like complementary colours (opposites on the colour wheel), or analogous colours (neighbours on the colour wheel). Artists and designers create different visual effects and contrasts with different harmony types.

Colour harmony examples, image from studiobinder

Extracting colours across the Cooper Hewitt collection
It’s already possible to search by colour on Cooper Hewitt’s collection site. Colour data was extracted using Giv Parvaneh’s great tool RoyGBiv (described in this Cooper Hewitt Labs post). Roughly, RoyGBiv works by checking the colour value of each pixel in an image, clustering colour values that are similar enough to be considered the same and returning up to 5 dominant colours in an image.

The colours extracted from Cooper Hewitt’s collection with RoyGBiv are good on the whole, but errors sometimes occur. The background colour is sometimes picked up. The effect of light and shadow on a 3D object can introduce multiple, illusory colours:

As always there are quirks working with digitised collections, like these Dutch tiles which had coloured stickers on them when they were photographed:

Or lace photographed against a dark background for contrast:

Since the possible number of unique colours extracted across the collection is huge, searching by colour on the Cooper Hewitt website is simplified by snapping extracted colours to the closest value in a standardised palette (the default is the CSS4 web colour palette, but the CSS3 and Crayola palettes are also options). On the Cooper Hewitt website, you can search the collection by 116 CSS4 colours. Both the original and ‘snapped to’ colour palettes are available in the Cooper Hewitt data – all stored as hex codes (six hexadecimal digits representing the levels of red, green and blue).

Prototyping
As a first step, I adapted my code to visualise collection items matching a CSS4 colour on a timeline (see visualisations below).

Although Cooper Hewitt has an API (an Application Programming Interface: a way for someone to make use of Cooper Hewitt’s data through a set of pre-defined requests made over the web), there is no method for returning all the objects matching a colour. Instead, I used collection data Cooper Hewitt had put on GitHub – an argument for institutions to offer both!

‘Orangered’

‘Steelblue’

‘Olivedrab’

I then started exploring how I might visualise objects featuring a colour harmony, first trying complementary colours (opposites on the colour wheel).

I initially tried to do this by matching a chosen CSS4 colour with the nearest CSS4 colour of opposite hue. The HSL and HSV (hue, saturation, lightness/value) colour systems define hue as an angle round a circle (0-360°), so I inverted hues by converting hex codes to HSL. The visualised results were unsatisfying though, as often the search failed to find any matches. This doesn’t mean to say there was a lack of objects with complementary colours, but that my search was too precise (and artificially precise since which CSS4 palette colours you can consider to be complementary is fuzzy, and the colour data is imprecise anyway e.g. the illusory colours extracted for 3D objects).

I tried extending the reach of my search to matching several colours close to the inverted hue, but it felt very frustrating not to have a visual reference to the range of colours in a region and what colours were being searched over.

So I started experimenting with using a colour wheel input as a way to pick colour combinations and simultaneously see possible hue relations. I first tried mapping the colours from the standardised palettes by HSL round a circle.

‘Snapped to’ colours in the Cooper Hewitt collection. CSS4 (left) and Crayola (right) palettes mapped by hue (in HSL). Angle = hue, radius = lightness.

And to make it easier to see the possible colours, I wrote some code to map the CSS4 palette colours to a wheel.

CSS4 palette colours → mapped round a wheel. Hue (HSL) = angle, ordered by lightness

I realised at this point, though, that the resulting design doesn’t match a typical artist’s/pigment colour wheel (which has red, yellow, blue – RYB – primary colours). HSL is a simple transformation of RGB colour space, and therefore the wheel has red, green, blue primaries. If this colour wheel is used to search over design artefacts, surely it would be more appropriate to use a design closer to the norm for artists and designers? (These in-depth articles by David Briggs – part 1, part 2 – explain the differences between traditional and modern colour theory, and colour training for artists).

There is no ‘correct’ colour wheel to adopt, but converting my HSL colour wheel to something closer to an artist’s version (using code from Ben Knight’s implementation of Adobe’s ‘Kuler’ colour wheel) felt like a reasonable compromise here.

(Left) Colours mapped by hue (HSL). Angle = hue, radius = lightness. (Right) Colour mapping adjusted to more closely resemble an artist’s colour wheel.

Using this colour wheel as a guide and an input, I could see and choose which colours to query. By searching over multiple colours, the visualised results were better. (In the images below, white and black borders around tiles in the colour wheel indicate the searched-over colour combinations):

Purple against olive timeline

Orangered against cyan/blue timeline

Querying against colour data in HSV
While the results looked better with this prototype, the user interface is a mess and complicated to use. And the search query was not excluding objects that featured other colours in addition to the searched colour combination.

Sticking with the CSS4 palette was greatly complicating the task, so I abandoned using it. I converted all the original extracted colours (not ‘snapped’) from hex codes to HSV and created my own Elasticsearch index with the HSV colours stored as a nested datatype. This way I can: search over a hue range, with a threshold on saturation and value; exclude objects also featuring other hues; and it is simple to define more complex colour harmony searches (e.g. analogous, triadic, quadratic and split complementary).

Different colour harmonies tried in prototyping

Colour wheel graphic for objects
As a by-product, I realised I could repurpose my code to map individual object palettes round a colour wheel too. Thus, you get a compact graphic describing the colour relationships present in a single design. This is a nice example of the serendipity of designing, where you identify new possibilities as a result of seeing what you have already made.



(Above) Object with colour palette, (below) palette mapped to a wheel: easy to see complementary harmony


Colour wheel graphic examples

I adapted a simple artist’s (RYB) colour wheel to use as an input and tested the prototype with visitors at Royal College of Art’s January 2018 ‘Work in Progress’ show.

Testing the prototype with visitors at Royal College of Art’s Jan 2018 ‘Work in Progress’ show

In order to avoid reducing the size of the images (so it’s still possible to see what the objects are), I’ve capped the number of visualised objects to the 100 most saturated in colour.

There were few hits for the more complex harmonies (quadratic, tetradic, split complementary) and the results felt less convincing. I had widened the hue range to search over in order to increase the small number of hits, so the results were less visually cohesive anyway. And, in conversations with the museum curators, we decided to drop these more complex harmonies from the interface.

As mentioned earlier, there are some errors in the colour data. At this stage, since this setup only allows a fixed set of possible searches, with repeatable results, it was worth it for me to do some manual editing of the colour data to remove obvious errors.

Final interface design
For the final (more polished!) interface design, which is now on display, I set on adopting a colour wheel input inspired by this Hilaire Hiler design in Cooper Hewitt’s collection. (This wheel actually has 4 ‘psychological’ colour primaries and features 30 hues). The interface has 4 harmony options: monochromatic, complementary, analogous and spectrum (a rainbow colour option).

Color wheel picker, inspired by Hiler’s design, used in ‘Dive into Color’



‘Dive into Color’ installed at Cooper Hewitt. Photo credit: Caroline Koh Smith

‘Dive into Color’ installed at Cooper Hewitt. Photo credit: Caroline Koh Smith

What does the tool reveal?
Visualising the Cooper Hewitt data this way gives some sense of when colours appear in time. There are no results for purple pre-19th century. Perhaps because of the difficulty and expense of producing purple before synthetic dyes/pigments were developed in the 19th century?

Though, as often is the case interpreting collection visualisations, it is difficult to disentangle historical trends from the biases and character of what has been collected and how it has been catalogued. (And bear in mind I’m only visualising the 100 objects most saturated in colour for a search). For example, these green and purple Japanese prints of irises are clearly part of a set rather than indicating some colour trend around 1910. Using the images themselves as data points is helpful for diagnosing this.

The same purple-green visualisation demonstrates how the tool can connect artefacts across time, in this case with by similar colour scheme/design:


(Left) Frieze (USA), 1890–1910; Manufactured by Hobbs, Benton & Heath, (right) Sidewall, Anemone, 1960–66; Designed by Phoebe Hyde

The tool surfaces colours, used in a particular material, that are strongly attached to design types. For example these English vivid blue and white late-18th century ceramic buttons/medallions:


(From left) Medallion (England), late 18th century, stoneware; Medallion (England), late 18th century, stoneware; Button (England), late 18th century; stoneware

Blue and white ceramics manufactured in the Netherlands in the late-17th century, early-18th century:


(From left) Plate (Netherlands), 1675–1725, tin-glazed earthenware; Plaque (Netherlands), 1675–1725, tin-glazed earthenware; Obelisk (Netherlands), ca. 1700–25, tin-glazed earthenware

And French red and white textiles in the late 18th/ early 19th century:


(From left) Textile (France), late 18th century, cotton; Textile (France), ca. 1850, cotton; Textile (France), 18th century, cotton

Visualising blue-yellow shows more saturated colour from mid-19th century onwards. Is this signalling changing fashion, or the availability of new synthetic dyes/pigments? Can we connect the more saturated harmony in designs from the mid-1800s with Chevreul’s influential text from the time ‘The Law of Simultaneous Colour Contrast’, describing how colour harmony can be used to create a more vibrant effect? Though a number of the earlier objects are textiles and the colours will have faded over time. Possibly a combination of these factors is at play here.

User evaluations
While I’ve discussed historical trends and the Cooper Hewitt collection, I’m also interested in how others might use a tool like this in their own projects, and with other collections. I conducted a number of interviews around this tool design with history of design students and colour history specialists, exploring their impressions of it and if/how they might use it in their own work. (I was also interested to talk with designers about using a tool like this for design inspiration, but struggled with recruiting!)

The history of design students (Masters students in History of Design from the Royal College of Art/Victoria & Albert Museum programme) discussed examples from their own work where such a tool could be useful. Example projects included: tracing the use of blue through time in anti-vaccination movement posters to convey trust; or pink clothing in the history of women’s protest movements. In both these examples a hue, rather than a more specific colour, was of interest. Out of these conversations, the most useful features to add would be a filter by object type, and to be able to narrow down a time period.

For the specialist colour audience, though, this tool design has some issues. Not least because I do not know how accurately the photos represent the true colours of the objects (what lighting conditions the photographs were taken in, if they have been retouched etc.). While the overall extracted colours seem generally good, they may not be precise enough for some. The control in searching by colour – only by hue – may also be too limited for some needs.

Seeing is believing?
Colour data is computationally extracted, in contrast with manually added metadata. Do these different cases require different considerations for designing visualisations?

In this post, I’ve used arguments like it ‘looked better’, or the results were ‘more satisfying’ to explain my design decision-making. Working with colour data I knew had errors, I was more comfortable adjusting parameters in my search queries and editing obviously wrong colour data to return what looked ‘better’ to me. For colour, you can immediately see when images appear in the visualisation don’t match. (Though, of course, looking at the visualised results will not tell you if there are absent items). In interviews, I asked whether this data massaging to produce more satisfying results bothered interviewees and was often told the person didn’t mind, but they’d worry if there were obvious errors appearing in the visualisation.

While prototyping the design in conversation with curators at Cooper Hewitt, we discussed the possibility of different versions of this tool: offering more control in search and not massaging parameters for in-depth researchers. But there is also value in visually satisfying results. As a curator expressed it: “We have a large number of professional designers and design students who come here … Just seeing beautiful examples of how people have used particular colour schemes is research. So the visually satisfying… seeing the most compelling works has a value as well. For the professional designers who, say ‘wow this is really incredible use of this colour scheme. I want to share this with my students.’

‘Dive into Color’ has since been exhibited in the London Design Festival 2018, and will hopefully go online at some point. Any feedback is very welcome: olivia.fletcher-vane@network.rca.ac.uk

Many thanks to Cooper Hewitt for their help with this project: especially Pamela Horn, Jennifer Cohlman Bracchi, Susan Brown and the technical team for getting ‘Dive into Color’ up and running in the galleries. Thanks to Neil Parkinson who showed me the Colour Reference Library at RCA, to Dr Alexandra Loske, Patrick Baty and RCA students for their thoughts, and to Jonny Jiang for help with the final UI design. And thanks to Stephen Boyd Davis for his continued help and support!



Three low white pillars glow with light while one person leans over each, pressing a button on the right side of each pillar releasing a unique scent.

Accessible Exhibition Guide: Delivering Content to All

When the user is included in the design process from the start, choices multiply for everyone’s benefit.

In Cooper Hewitt’s newest exhibitions, Access+Ability (through September 3, 2018) and The Senses: Design Beyond Vision (through October 28, 2018), designing with the user and visitor at the center are integral. Accessibility and inclusion are a key focus of these current exhibitions and essential strategic goals for the museum, now and for the years ahead. There are many exciting ways we’re stepping up our efforts even more and aiming to provide all audiences the same quality of experience on campus and online. https://www.cooperhewitt.org/accessibility-at-cooper-hewitt

In The Senses, visitors are welcomed into a multisensory playground touching, smelling, hearing, and seeing in dynamic and new ways.

Four adults are lined along and facing a curving wall covered in black synthetic fur. They stand on a wooden floor with backs facing outward as the each touch the wall moving both hands along and around the wall's surface.

Visitors touching a furry wall activate orchestral musical compositions. Designed by Studio Roos Meermanand KunstLAB Arnhem

While preparing for the exhibition we knew that there would be many touchable objects and installations (43 to be exact) in The Senses. What we lacked was the medium to deliver the exhibition content to every visitor. Cooper Hewitt’s Pen offers agency and a new way to explore in a museum for people who are sighted but without audio, how might visitors with low vision and who are blind explore the content?

Making Cooper Hewitt Content Accessible
In 2017, we launched our large print label feature on our collection website. This system makes available each exhibition’s label content (text and image) responsive to the user’s device and customizable in six different font sizes. Our Visitor Experience team also has an efficient way to produce large print label binders, directly from our collection database, for the galleries to share with visitors. We began investigating solutions for making content labels and gallery cues readable for people who are blind. We considered Braille labels, using beacon notifications, and even floor mats in front of each object and installation to message that an interaction is calling. Asking questions such as “which text would be more meaningful to print in Braille on the labels—object tombstone (museum-speak for object stats) or text about the object?” Wrong questions! All of this research and internal discussion wasn’t leading to viable solutions. Our group of five sighted colleagues, good intentioned as we were, weren’t getting at what the user might want. It was during a gallery visit with Sina Bahram—computer scientist, consultant, and researcher and President and Founder of Prime Access Consulting (PAC), which advises museums and other institutions on website and digital accessibility—who was onsite for meeting when he simply said “Identification and verification.” So obvious but somehow we weren’t seeing it! Every visitor wants agency to determine what information to access, about which object, when he or she wants it.

White label displays a bright yellow textures bar that messages touch | hear in Braille. Also printed in Braille are the object ID number that the user will enter into the app.

Accessible Exhibition Content Design

The Scaffolding
Using our API and label rail system—designed for access to the collection in the galleries—we determined the identification would be an assigned object ID number e.g. 0103, and verification is why we have the name of the object in Braille as well. This way, once you type the number of the “identified” object into your phone you can “verify” that you’ve got the right one in front of you. An added benefit since users can choose if they even want to read more about that particular object. An app could call the API and deliver the exhibition content. After discussing with our colleagues we prototyped, tested, and moved forward—with about 15 days to go before exhibition opening—to develop a version 1 native app for iOS with v.2 web-based application for android use.

Cooper Hewitt Accessible Exhibition Guide printied in white type on black background about a blank box where the keypad below is used to type in content ID number. HELP appears in top right corner.

Content number entry screen for Coper Hewitt app.

Accessible Systems
Bahram and Joshua Lerner of Monorail built the app. The tactile labels were produced by Steven Landau, whose company Touch Graphics creates accessible audio and tactile graphics. Every label in The Senses features an object title and number, printed in braille and Latin characters. Smartphones are used to access the associated content. Labels are discoverable as they are installed at a consistent height throughout the exhibition on our label rail system. Cooper Hewitt’s first Accessible Exhibition Guide was uploaded and went live on April 18. Download it from the Apple App Store or connect from our website. The guide contains the exhibition’s descriptive and interpretive content in both text and audio formats. A visitor can choose to read the text, hear it with a screen reader, or listen to an audio recording.

From top down: Black background with drop-out white type: 0104, Dialect for a New Era, 2017–18; Image of six glowing white pillars; label text.

Image of screen that appears when Dialect for a New Era content ID is entered into the app.

The Cooper Hewitt Accessible Exhibition Guide was conceived as we looked for multi-modal channels for content delivery for users with differing abilities. Designing for multiple senses highlights that the methodology of access not dictate level of access, which is the goal for the Accessible Content Guide and for Cooper Hewitt.

Exploring the Cooper Hewitt collection with timelines and tags: guest post by Olivia Vane

‘Black & white’ timeline detail, Cooper Hewitt data

A physical museum is itself a sort of data set — an aggregation of the micro in order to glimpse the macro. One vase means little on its own, beyond perhaps illustrating a scene from daily life. But together with its contemporaries, it means the contours of a civilization. And when juxtaposed against all vases, it helps create a first-hand account of the history of the world.
From ‘An Excavation Of One Of The World’s Greatest Art Collections

The ability to draw on historic examples from various cultures, to access forgotten techniques and ideas and juxtapose them with contemporary works, creates provocative dialogues and amplifies the historic continuum. This range is an asset few museums have or utilize and provides a continuing source of inspiration to contemporary viewers and designers.”
From ‘Making Design: Cooper Hewitt, Smithsonian Design Museum Collection’ p.28

Guest post by Olivia Vane

I’m 4 months into a 5-month fellowship at Cooper Hewitt working with their digitised collection. I’m normally based in London where I’m a PhD student in Innovation Design Engineering at the Royal College of Art supervised by Stephen Boyd Davis, Professor of Design Research. My PhD topic is designing and building interactive timelines for exploring cultural data (digitised museum, archive and library collections). And, in London, I have been working with partners at the V&A, the Wellcome Library and the Science Museum.

The key issue in my PhD is how we ‘make sense’ of history using interactive diagrams. This is partly about visualisation of things we already know in order to communicate them to others. But it is also about visual analytics – using visuals for knowledge discovery. I’m particularly interested in what connects objects to one another, across time and through time.

I am very fortunate to be spending time at Cooper Hewitt as they have digitised their entire collection, more than 200,000 objects, and it is publicly available through an API. The museum is also known for its pioneering work in digital engagement with visitors and technical innovations in the galleries. It is a privilege to be able to draw on the curatorial, historical and digital expertise of the staff around me here for developing and evaluating my designs.

As I began exploring the collection API, I noticed many of the object records had ‘tags’ applied to them (like ‘birds’, ‘black & white’, ‘coffee and tea drinking’, ‘architecture’, ‘symmetry’ or ‘overlapping’). These tags connect diverse objects from across the collection: they represent themes that extend over time and across the different museum departments. This tagging interested me because it seemed to offer different paths through the data around shape, form, style, texture, motif, colour, function or environment. (It’s similar to the way users on platforms like Pinterest group images into ‘boards’ around different ideas). An object can have many tags applied to it suggesting different ways to look at it, and different contexts to place it in.

Where do these tags come from? Here, the tags are chosen and applied by the museum when objects are included in an exhibition. They provide a variety of ways to think about an object, highlighting different characteristics, and purposely offer a contrasting approach to more scholarly descriptive information. The tags are used to power recommendation systems on the museum collection website and applications in the galleries. They constitute both personal and institutional interpretation of the collection, and situate each item in a multi-dimensional set of context.


Some examples of tags and tagged objects in the Cooper Hewitt collection

I was interested to trace these themes over the collection and, since objects often have multiple tags, to explore what it would be like to situate or view each object through these various lenses.

The temporal dimension is important for identifying meaningful connections between items in cultural collections, so my first thoughts were to map tagged objects by date.

I’m working on a prototype interface that allows users to browse in a visually rich way through the collection by tags. A user starts with one object image and a list of the tags that apply to that object. They may be interested to see what other objects in the collection share a given tag and how the starting image sits in each of those contexts. When they click a tag, a timeline visualisation is generated of images of the other objects sharing that tag – arranged by date. The user can then click on further tags, to generate new timeline visualisations around the same starting image, viewing that image against contrasting historical narratives. And if they see a different image that interests them in one of these timelines, they can click on that image making it the new central image with a new list of tags through which to generate timelines and further dig into the collection. By skipping from image to image and tag to tag, it’s easy to get absorbed in exploring the dataset this way; the browsing can be undirected and doesn’t require a familiarity with the dataset.


‘Coffee and tea drinking’ timeline: designs in the collection stretch from 1700 to the present with a great diversity of forms and styles, elaborate and minimal.

‘Water’ timeline. Here there are many different ways of thinking about water: images of garden plans with fountains and lakes from the 16th–18th Century, or modern interventions for accessing and cleaning water in developing countries. Contrasting representations (landscape painting to abstracted pattern) and functions (drinking to boating) stretch between.

‘Water’ timeline, detail


‘Space’ timeline: 1960s ‘space age’ souvenirs (Soviet and American) precede modern telescope imaging. And a 19th Century telescope reminds us of the long history of mankind’s interest in space.

I’m plotting the object images themselves as data points so users can easily make visual connections between them and observe trends over time (for instance in how an idea is visually represented or embodied in objects, or the types of objects present at different points in time). The images are arranged without overlapping, but in an irregular way. I hoped to emulate a densely packed art gallery wall or mood board to encourage these visual connections. Since the tags are subjective and haven’t been applied across the whole collection, I also felt this layout would encourage users to view the data in a more qualitative way.


Yale Center for British Art: Long Gallery, image credit Richard Caspole, YCBA & Elizabeth Felicella, Esto

Moodboard, image credit ERRE

Dealing with dates

How to work with curatorial dating?

While most of the post-1800 objects in the dataset have a date/date span expressed numerically, pre-1800 objects often only have date information as it would appear on a label: for example ‘Created before 1870s’, ‘late 19th–early 20th century’, ‘ca. 1850’ or ‘2012–present’. My colleagues at the Royal College of Art have previously written about the challenges of visualising temporal data from cultural collections (Davis, S.B. and Kräutli, F., 2015. The Idea and Image of Historical Time: Interactions between Design and Digital Humanities. Visible Language49(3), p.101).

In order to process this data computationally, I translated the label date text to numbers using the yearrange library (which is written for working with curatorial date language). This library works by converting, for example, ‘late 18th century’ to ‘start: 1775, end: 1799’ For my purposes, this seems to work well, though I am unsure how to deal with some cases:

  • How should I deal with objects whose date is ‘circa X’ or ‘ca. X’ etc.? At the moment I’m just crudely extending the date span by ±20 years.
  • How should I deal with ‘before X’? How much ‘before’ does that mean? I’m currently just using X as the date in this case.
  • The library does not translate BC dates (though I could make adjustments to the code to enable this…) I am just excluding these at the moment.
  • There are some very old objects in the Cooper Hewitt collection for example ‘1.85 million years old’, ‘ca. 2000-1595 BCE’ and ‘300,000 years old’. These will create problems if I want to include them on a uniformly scaled timeline! Since these are rare cases, I’m excluding them at the moment.

Skewing the timeline scale

The Cooper Hewitt collection is skewed towards objects dating post-1800 so to even out image distribution over the timeline I am using a power scale. Some tags, however, – such as ‘neoclassical’ or ‘art nouveau’ – have a strong temporal component and the power scale fails to even out image distribution in these cases.

How are the images arranged?

My layout algorithm aims to separate images so that they are not overlapping, but still fairly closely packed. I am using a rule that images can be shifted horizontally to avoid overlaps so long as there is still some part of the image within its date span. Since images are large data markers, it is already not possible to read dates precisely from this timeline. And the aim here is for users to observe trends and relationships, rather than read off exact dates, so I felt it was not productive to worry too much about exact placement horizontally. (Also, this is perhaps an appropriate design feature here since dating cultural objects is often imprecise and/or uncertain anyway). This way the images are quite tightly packed, but don’t stray too far from their dates.

‘Personal environmental control’ timeline: a dry juxtaposition of these decorated fans against modern Nest thermostats.

‘Foliate’ timeline, detail

‘Squares’ timeline

I’ve also tried to spread images out within date spans, rather than just use the central point, to avoid misleading shapes forming (such as a group of objects dating 18th century forming a column at the midpoint, 1750).

Things to think about

Interface design

  • The layout algorithm slows when there are many (100 or more) images visualised. Is there a more efficient way to do this?
  • I’m considering rotating the design 90° for web-use; I anticipate users will be interested to scroll along time, and scrolling vertically may improve usability with a mouse.
  • Would a user be interested to see different timeline visualisations next to each other, to compare them?
  • It could be interesting to apply this interface to other ways of grouping objects such as type, colour, country or other descriptor.
  • I need to build in a back button, or some way to return to previously selected images. Maybe a search option for tags? Or a way to save images to return to?

Tags

  • This visualisation design relies on curator-applied tags and, therefore, would be difficult to apply to other datasets: might there be a way to automate part of this? Maybe using computer vision technologies?
  • Since objects are only tagged if they are featured in an exhibition, the interface misses many relevant objects in the collection when visualising a theme. For instance there are 23 objects tagged ‘Japanese’, but keyword searching the collection for ‘Japanese’ returns 453 objects. While the interface works well with the current quantities of images (up to about 100), what changes to the design would be needed to increase this number?
  • What about grouping tags together? There is no dictionary or hierarchy to them so some are very similar, for instance: ‘floral’, ‘floral bouquets’, ‘floral swag’, ‘flower’, ‘flowering vine’, and ‘flowers’. Though it can be interesting to see the subtle differences in how related tags have been applied. For instance: ‘biomorphic’ is more often applied to modern objects; ‘nature’ is generally applied to depictions of nature such as landscape paintings; while ‘organic’ is applied in a more abstract sense to describe objects’ form.

I’m at a stage where I’d like to get user feedback from a range of audiences (general and scholarly) to explore some of these questions.

This is very much a work in progress, and feedback is welcome! (olivia.fletcher-vane@network.rca.ac.uk to get in touch by email)

Label Writer: Connecting NFC tags to collection objects

IMG_20150610_113555

Labels, for better or worse, are central to the museum experience. They provide visitors with access to basic object information (metadata) and a tiny glimpse into the curatorial research for everything in the galleries, helping to place objects in context. At Cooper Hewitt, they are also the gateway through which the Pen‘s “collect” interaction is realized.

In order for the Pen to know which object label you’re trying to collect, every label in the museum contains an NFC tag that is written with the object’s ID. When an object gets added to our database we give it an ID, an integer that is unique across our entire online collections database. Our beloved Spanking Cat, for example, has the ID number 18382391. Writing that number to an NFC tag is a simple task, but doing it hundreds of times for every new exhibition we roll out will get tedious very quickly. Thus, Label Writer was born.

Label Writer is an Android app that writes, reads and locks NFC tags based on the object to which the label refers. The staff member can look up the objects that are in a given room of our museum, select one or more of them, and assign them to the label in question. They can search for specific objects in case an object’s location hasn’t been updated yet. They can also write tags for videos and shop items.

The front and back of the NFC tag we use in our labels, with pennies for scale

From left to right: the back and front of the NFC tags we use in our labels, and pennies for scale.

Planning

After thinking about the app we came up with the following requirements:

  1. When processing a user’s visit, we need to know what type of thing they’ve collected. When the Pen launched, this was either objects or videos, and has since grown to include shop items. To facilitate that process, Label Writer would have to distinguish between types of things and write tags that indicated that.
  2. It would need to write multiple things to a tag, including things of different types. One label might contain three objects. Another label might contain one video and two objects.
  3. It would need to lock tags. Leaving the tags unlocked would enable anyone with an NFC-enabled smartphone to walk around the galleries and overwrite our tags. Locking the tags prevents this.
  4. It would need to read tags and display images of what’s on a tag. This is so we can double-check what is on a tag before we lock it. We only print one copy of every label – sometimes through an offsite service – and the wall labels (as opposed to the rail labels) have their NFC tags glued in and unable to be replaced.
  5. Label Writer would have to present objects in a constrained format — having to find the object on a label from our total collection of 210,000 objects every time, through accession number lookup or other traditional searches, would get annoying very quickly.
IMG_20150608_172543

The NFC tags on our wall labels are built in to the label.

IMG_20150608_172442

The NFC tags on our rail labels are interchangeable.

Production

I decided to build the app in Android because it has great support for NFC and we have plenty of Nexus 9 tablets at the museum for use in the galleries. I started with this boilerplate for an Android read/write NFC app and performed initial tests to make sure we could write a tag that could be read by some of the early Pen prototypes. Once that was established, I began fleshing out the UI of the app and worked on hooking it up to our API.

The API gives us so much to work with on the app’s frontend. Being able to display an object’s image is a much better way to confirm that a label is written correctly than by comparing IDs or accession numbers. The API also lets us see all of the objects in a given room of the museum, which means that the user can write labels in an ordered fashion. When the labels arrive from the printer they are grouped by room, and often we will not write the tags until they have been installed in the galleries, so “by room” is a convenient way to organize objects on the frontend. It also gives us easy access to videos and shop items, and allows the app to easily be expanded to write labels for more things from our collections database. Since our collections site alpha, we have stressed the importance of an easily-accessed permanent ID for everything: people, objects, videos, exhibitions, locations etc., and now with the Pen we can prepare labels that allow users to collect any one of those things during their visit to the museum.

01

When I took all these screenshots, the app was called “Tag Writer”, as in “NFC Tag Writer.” But “Label Writer” sounds better.

When the app is opened, the user is prompted with a few ways to group objects. Since we added videos and shop items to the app, this intro screen has grown a bit so it will probably get a redesign when we next expand its capabilities. But for now, users have a few options here:

  1. They can select a room from a dropdown menu (here’s a list of all of our rooms)
  2. They can enter an individual accession number
  3. They can enter a video’s ID
  4. They can search the shop (see Aaron’s recent post about adding shop items to our online collection)

When one of these options is used, the relevant objects appear on the screen. For example, selecting Room 106 brings up some of the posters from our current How Posters Work exhibition. Being able to display the images of the posters makes it much easier for the user to confirm that they are connecting the dots accurately — accession numbers and object IDs are easily confused (not to mention boring to look at).

02

The user can then tap one or more objects to add them to a label. In the screenshot below, you can see that two objects have been selected and the orange bar at the bottom has formatted them to be written to a tag — in this case, chsdm:o:68730187;18708395. The way that things get written to tags follows a format we agreed upon early in the Pen design process, as various developers would be building applications that relied on reading and parsing a Pen’s content. In brief, chsdm is a namespace for our museum that is not particularly necessary but serves as a header for what follows. o stands for object and then the ID (or semicolon-delimited IDs) that follow are the IDs of objects. The letter can change: v for video, s for shop, and on and on for whatever other things we might eventually write to tags. We add a pipe character (|) to delimit multiple types of things on a tag, so a tag with an object and a video might look like chsdm:o:18714653|chsdm:v:68764195. But all of this is handled by the app based on what the user selects in the interface.

03

Next, a user can hold the tablet up to the object label to write the NFC tag. When the tag is written, the orange bar at the bottom turns green to let the user know it went okay. Later, using the “Read Tags” functionality of the app, the user can confirm the tag’s contents by reading the NFC tag. The app parses the tag and loads the things it thinks the tag refers to. When this is confirmed, the user can lock the tag to make sure nobody overwrites it.

05

Here’s everything, from start to finish, using the object-lookup-by-accession-number functionality.

Next Steps

I mentioned that the home screen of this app will get a redesign as we allow more types of things to be written to tags. The user experience of the tag writing process needs a little finessing — a bug in how success messages get displayed has resulted in a few tags that get written with bunk data. Fortunately that is caught in the “read” phase of the workflow, but should be corrected earlier.

Overall, as we keep swapping out exhibitions, Label Writer will get more and more use. We will use these opportunities to collect feedback from the app’s users and make changes to the app accordingly.

Things people make with our API #347: Nick Bartzokas

Shortly after Cooper Hewitt opened on December 12, 2014, the museum hosted a private event. At that preliminary scoping for the event, I bumped into Nick Bartzokas who had written a spiffy little application that he was planning on using for visuals on the night. We got talking and it turned out that he’d made it using the Cooper Hewitt API – all with no prompting. Even though it didn’t end up getting fully used, he has released it along with the source code.

Tell me a bit about yourself, what do you do, where do you do it?

I’m a creative coder. I like trying out new things. That’s lead me to develop a wide variety of projects: educational games, music visualizations, a Kinect flight simulator, an interactive API-fed wall of Arduinos and Raspberry Pis. These days I’m making interactive installations for the LAB at Rockwell Group. I came to the LAB from the American Museum of Natural History, so museums are in my blood, too.

The LAB is a unique place. We’re a team of designers, thinkers, and technologists exploring ways to connect the digital with the physical.

Here’s a couple links to our work: (1 / 2)

You made a web app for an event at Cooper Hewitt, what was the purpose of it, what does it do?

Our friends at Metropolis celebrated their magazine’s redesign at the Cooper Hewitt in December 2014. The LAB worked on a one-night-only interactive installation that ran on one of the museum’s 84″ touchtables. We love to experiment, so when opportunities like this come up, we jump at the chance to pick up a new tool and create.

In preparation for the event, I decided to prototype using Phaser, a 2D Javascript game framework. It markets itself as a tool for making web platformers, but it’s excellent for 2D projects of all kinds.

It gives you an update and render cycle that’s familiar territory for those that work with other game engines or creative coding toolkits like openFrameworks. It handles user input and asset management well. It has three physics engines of ranging sophistication, from simple Arcade collisions to full-body physics. You can choreograph sprites using built-in tweening. It has PIXI integrated under the hood, which supplies fast graphics with useful shaders and the ability to roll your own. So, lots of range. It’s a great tool for rapid browser-based prototyping.

The prototype we completed for the event brought Metropolis magazine’s digital assets to life. Photos drifted like leaves on a pond. When touched, they attracted photos of similar objects, assembling into flower petals and fans. If held, they grew excited until bursting apart. It ran in a fullscreened browser and was reponsive to over 40 simultaneous touch points. Here’s that version in action.

For the other prototype, I used Cooper Hewitt’s API to generate fireworks made of images from the museum’s collection. Since the collection is organized by color, I could ask the API for all the red images in the collection and turn them into a red firework burst.

I thought this project was really cool, so while it wasn’t selected for the Metropolis event, I decided to complete it anyway and post it..

OMG! You used the Cooper Hewitt API! How did you find out about the API? What was it like to work with the API? What was the best and the worst thing about the API?

When the LAB begins a project, we start by considering the story. We were celebrating the Metropolis magazine redesign. Of course that was the main focus. But their launch party was being held at the Cooper Hewitt, and they wrote about Caroline Baumann of the Cooper Hewitt in their launch issue, so the museum was a part of the story. We began gathering source material from Metropolis and Cooper Hewitt. It was then that I re-discovered the Cooper Hewitt API. It was something I’d heard about in the buzz leading up to the museum’s reopening, but this was my first time encountering it in the wild.

You all did a great job! Working with the API was so straightforward. Everything was well designed. The API website is simple and useful. The documentation is clear and complete with the ability to testdrive API methods in the browser. The structure of the API is sensible and intuitive. I taught a class on API programming for beginners. It was a challenge to select APIs with a low barrier to entry that beginners would be excited about and capable of navigating. Cooper Hewitt’s API is on my list now. I think beginners would find it quick, easy, and rewarding.

The pyramid diagram on the home page was a nice touch, a modest infographic with a big story behind it. It gives the newcomer a birds eye view of the API, the new gallery apps, the redesigned museum, all the culmination of a tremendous collaboration.

The ability to search the collection by color immediately jumped out to me. That feature is just rife with creative possibilities. My favorite part, no doubt. In fact, I think it’s worth expanding on the API’s knowledge of color. It knows an image contains blue, but perhaps it could have some sense of how much blue the image contains, perhaps a color average or a histogram.

In preparing a nodejs app to pull images for the fireworks, I checked to see if someone had written a node module for the Cooper Hewitt API, expecting I’d have to write my own. I was pleasantly surprised to see that the museum’s own Micah Walter authored one . That was another wow moment. When an institution opens up an API, that’s good. But this is really where Cooper Hewitt is building a bridge to the development community. It’s the little things.

So if others want to play with what you made where can they find it?

Folks can interact with the prototype here and they can peek at the source code on GitHub.

Thanks for having me, and congratulations on the API, the museum’s reopening, and a job well done!

How re-opening the museum enhanced our online collection: new views, new API methods

At the backend of our museum’s new interactive experiences lies our API, which is responsible for providing the frontend with all the data necessary to flesh out the experience. From everyday information like an object’s title to more novel features such as tags, videos and people relationships, the API gathers and organizes everything that you see on our digital tables before it gets displayed.

In order to meet the needs of the experiences designed for us by Local Projects on our interactive tables, we added a lot of new data to the API. Some of it was sitting there and we just had to go find it, other aspects we had to generate anew.

Either way, this marks a huge step towards a more complete and meaningful representation of our collection on the internet.

Today, we’re happy to announce that all of this newly-gathered data is live on our website and is also publicly available over the API (head to the API methods documentation to see more about that if you’re interested in playing with it programmatically).

People

For the Hewitt Sisters Collect exhibition, Local Projects designed a front-end experience for the multitouch tables that highlights the early donors to the museum’s collection and how they were connected to each other. Our in-house “TMS liaison”, Sara Rubinow, worked to gather and structure this information before adding it to TMS, our collection management system, as “constituent associations”. From there I extracted the structured data to add to our website.

We created a the following new views on the web frontend to house this data:

We also added a few new biography-related fields: portraits or photographs of Hewitt Sisters people and two new biographies, one 75 words and the other 50 characters. These changes are viewable on applicable people pages (e.g. Eleanor Garnier Hewitt) and the search results page.

The overall effect of this is to make more use of this ‘people-related’ data, and to encourage the further expansion of it over time. We can already imagine a future where other interfaces examining and revealing the network of relationships behind the people in our collection are easily explored.

Object Locations and Things On Display

Some of the more difficult tasks in updating our backend to meet the new requirements related to dealing with objects no longer being static – but moving on and off display. As far as the website was concerned, it was a luxury in our three years of renovation that objects weren’t moving around a whole lot because it meant we didn’t have to prioritize the writing of code to handle their movement.

But now that we are open we need to better distinguish those objects in storage from those that are on display. More importantly, if it is on display, we also need to say which exhibition, and which room it is on display.

Object locations have a lot of moving parts in TMS, and I won’t get into the specifics here. In brief, object movements from location to location are stored chronologically in a database. The “movement” is its own row that references where it moved and why it moved there. By appropriately querying this history we can say what objects have ever been in the galleries (like all museums there are a large portion of objects that have never been part of an exhibition) and what objects are there right now.

We created the following views to house this information:

Exhibitions

The additions we’ve made to exhibitions are:

There is still some work to be done with exhibitions. This includes figuring out a way to handle object rotations (the process of swapping out some objects mid-exhibition) and outgoing loans (the process of lending objects to other institutions for their exhibitions). We’re expecting that objects on loan should say where they are, and in which external exhibition they are part of — creating a valuable public ‘trail’ of where an object has traveled over its life.

Tags

Over the summer, we began an ongoing effort to ‘tag’ all the objects that would appear on the multitouch tables. This includes everything on display, plus about 3,000 objects related to those. The express purpose for tags was to provide a simple, curated browsing experience on the interactive tables – loosely based around themes ‘user’ and ‘motif’. Importantly these are not unstructured, and Sara Rubinow did a great job normalizing them where possible, but there haven’t been enough exhibitions, yet, to release a public thesaurus of tags.

We also added tags to the physical object labels to help visitors draw their own connections between our objects as they scan the exhibitions.

On the website, we’ve added tags in a few places:

That’s it for now – happy exploring! I’ll follow up with more new features once we’re able to make the associated data public.

Until then, our complete list of API methods is available here.

Robot Rothko

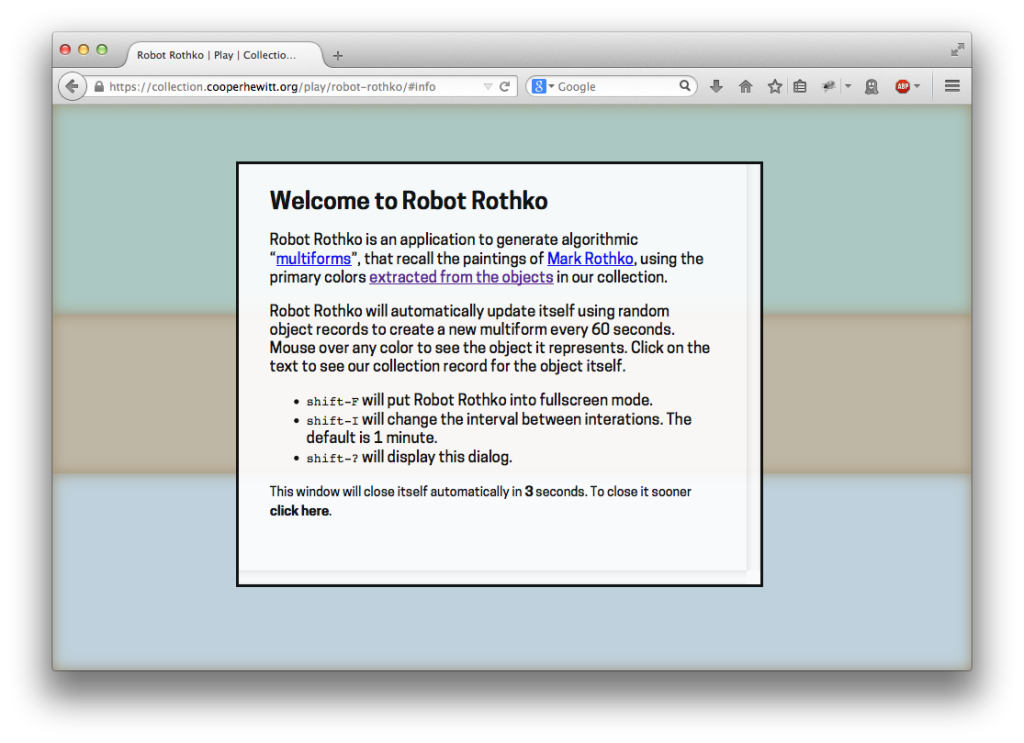

20140707-robot-rothko-infobox

Now that I’ve written this blog post it occurs to me that it would be trivial to build something similar on top of the Cooper Hewitt Collections API — since that’s ultimately where all this colour stuff comes from — so I will probably do that shortly and stick in it the Play section.

That’s something I wrote last week on my personal weblog. I was writing about a little web “application” that I’d made to generate algorithmic “multiforms” that recall the work of the late painter Mark Rothko. The source of the colors used to create these robot-multiforms are derived from photo uploads and extracted using the same code that the Cooper Hewitt uses to generate color palettes for the objects in our collection. We wrote about that process last year.

These robot “paintings” are built by fetching three photos and using their primary color to fill one of three stacked rectangles that make up the canvas. A dominant color for a fourth photo is used along with an inset CSS3 box-shadow to give the illusion a fuzzy, hazy background on which the rectangles sit. Every 60 seconds a new version is generated and the colors (and boxes) gently transition from old to new.

20140705-robot-rothko-2004

In that original blog post, I also wrote:

That’s it. It doesn’t do anything else and that’s part of the charm for me. It just sits in the background running in second-screen-mode stamping out robot-Rothko paintings. … It’s nice to have a new screen friend to spend the days the days with

They’re not really Rothko paintings, obviously, and to suggest that they are would do the painter a disservice. Rothko’s paintings are not just any random set of colors stacked on top of one another. Rothko worked long and hard to choose the arrangement of his paintings and it’s easy to imagine that he would have been horrified by some of the combinations that Robot Rothko offers up. But like the experimental Albers Boxes feature they are a nod and gesture – and a wink – towards the real thing.

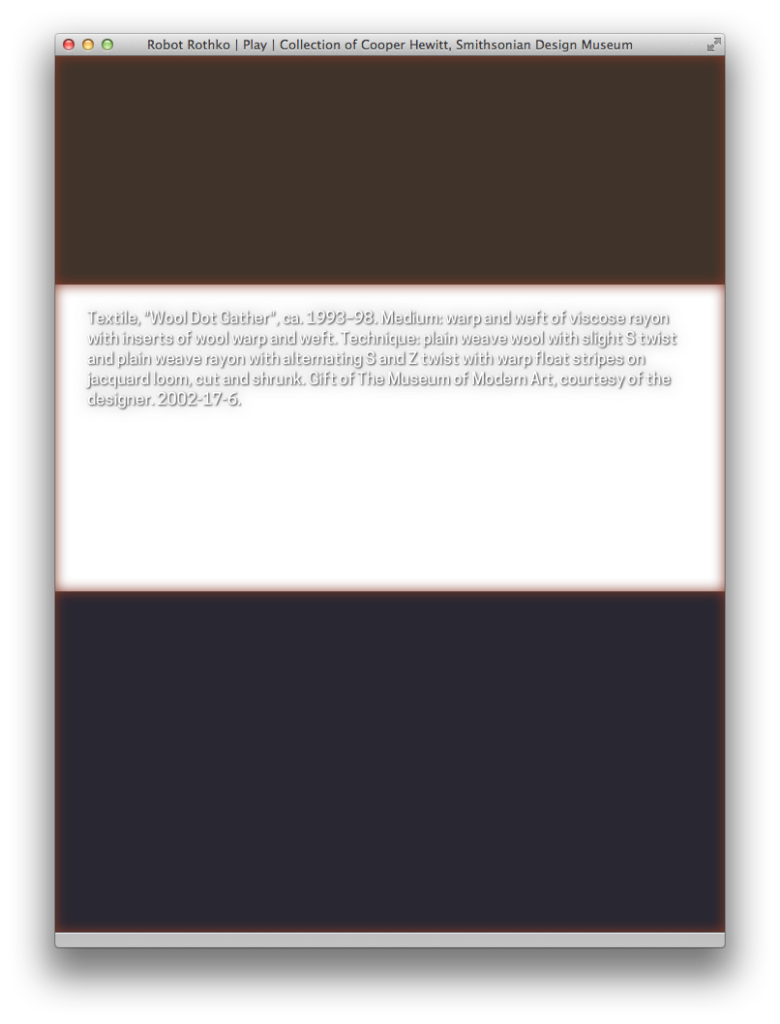

20140707-robot-rothko-fluid

Having gotten things working for a personal non-museum and not-really-for-strangers project I decided that it would be nice to do something similar for for the museum which is absolutely for everyone. So, today we are launching Robot Rothko which is exactly the same as the application described above except that it uses objects from our collection instead of photos as its source material. Like this:

https://collection.cooperhewitt.org/play/robot-rothko/#info



See the #info part of that URL? That will cause the application to load with an information box that explaining what you’re looking at (and that will close itself automatically after 30 seconds). If you just want to jump straight to the application all you have to do is remove the #info from the URL.

https://collection.cooperhewitt.org/play/robot-rothko/

Robot Rothko will automatically update itself using random object records to create a new multiform every 60 seconds. Mouse over any color to see the object it represents. Click on the text to see our collection record for the object itself.

20140707-robot-rothko-decade

You can also filter stuff by person, decade. You can also filter by the year we acquired an object if you can guess where it is; that one still feels a little buggy so we’re going to hold off publishing the URL until we can figure out what’s wrong. Here are some examples of the first two:

https://collection.cooperhewitt.org/play/robot-rothko/people/18046041

https://collection.cooperhewitt.org/play/robot-rothko/decade/1910

Robot Rothko is native to the web which means it will work in any modern web browser whether it’s on your desktop or your phone or your tablet. It can be put it to fullscreen mode (by pressing shift-F) and if you save the website’s URL to your homescreen on your phone, or tablet, it is configured to launch without any of the usual browser chrome. If you use a Mac you can plug the URL for Robot Rothko in to Todd Ditchendorf’s handy Fluid.app which will turn it all in to a shiny desktop application. I am guessing there are equivalent tools for Windows or Linux but I don’t know what they are.

20140707-robot-rothko-tablet

If you’d like to generate your own Robot Rothkos there’s an API method for doing just that:

https://collection.cooperhewitt.org/api/methods/cooperhewitt.play.robotRothko

And of course it works with our recently announced support for DSON as a response format:

curl -X GET 'https://api.collection.cooperhewitt.org/rest/?method=cooperhewitt.play.robotRothko&access_token=SEEKRET&person_id=18041501&format=dson'
such "rothko" is such "canvas" is so "49" and "28" and "23" many and "palette" is so such "colour" is "#b8ab5b" , "id" is "18805769" , "epitaph" is "Folding Fan, 1900u201305. Medium: silk, wood, horn, metal, metal spangles. Gift of Lillian C. Hart. 1985-89-1." wow ? such "colour" is "#c7c7c7" . "id" is "18640557" ! "epitaph" is "Drawing, "Two Studies for Rectangul", ca. 1965. Pen and black ink on white wove paper. Gift of Vladimir Kagan. 1992-56-7." wow , such "colour" is "#db8952" , "id" is "18133219" , "epitaph" is "Fragment, mid-18th century. Medium: silknTechnique: plain weave patterned by supplementary warp floats and complementary weft floats. Gift of John Pierpont Morgan. 1902-1-811." wow many ? "background" is such "colour" is "#c7a9af" . "id" is "18761047" ! "epitaph" is "Booklet Cover Sheet, 1916. Color woodcut on lavender wove paper paper. Museum purchase from Drawings and Prints Council Fund and through gift of Margery and Edgar Masinter and Merrill C. Berman. 1999-50-1-3." wow wow , "filters" is so many and "stat" is "ok" wow

Robot Rothko lives in a new section of the collections website called “Play“. The distinction between the Play section and the Experimental Features section of the website can probably be easiest thought of as: Experimental features are things that apply to the entirety of the collections website, while Play things are small contained applications that use the collections API and focus on or build off a particular aspect of the collection. The first of these was Sam Brenner’s SkyDesigner and Robot Rothko is actually the third such application.

20140707-wwms-boom

In between those two was What Would Micah Say? (WWMS) a quick end-of-day project to test out the W3C’s Text-to-Speech APIs that are starting to appear in some web browsers (read: Chrome and Safari as of this writing, and make sure you have the volume turned up). The WWMS “application” was mostly a simple 20-minute exercise to test whether fetching some content dynamically and feeding to the text-to-speech APIs actually works and produces something useable. It does, which is very exciting because it opens up any number of accessibility-related improvements we can starting thinking about adding to the collections website.

That we happened to use the cooperhewitt.labs.whatWouldMicahSay API method and then configured the text-to-speech API to read his words as if spoken by a “French” robot made it all a little bit silly and a little more fun but those are important considerations. Because sometimes playing at – or making interesting – a technical problem is the best way to work through whether it is even worth pursuing in the first place.

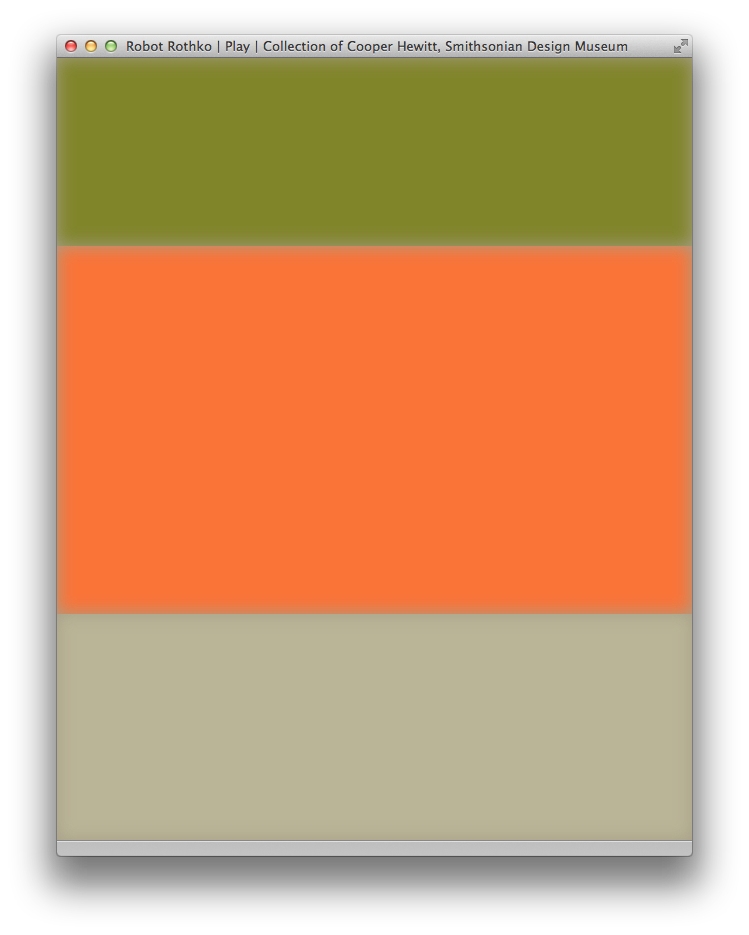

20140707-robot-rothko-girard-2

Guest post: Notes from hacking on the Cooper-Hewitt collections API

A couple of days ago the Labs hosted a guest to play with our API.

Over to Frankie to explain what he did and the challenges he faced. As it turns out, there’s a lot you can get done in a day.

Hi, I’m Frankie Roberto. I used to work at the Science Museum in London, where I produced their web projects. I’ve also worked with museums such as the British Museum whilst at digital agency Rattle. One theme running through all of this time is the importance of data, and the things that it can enable.

So when I learnt that the Cooper-Hewitt Museum had released a ‘public alpha’ of their collections database, the idea of spending a day playing with the data whilst in New York (on holiday!) seemed like it’d be fun. Plus, I get to hang out with Seb & co.

I signed up for a an API account ahead of time. This does feel like a bit of hurdle. Because the API uses oAuth 2.0, as well as creating an account, you then have to create an application, and then authorise yourself against your own application in order to get an access token which ultimately grants you access to the data. This makes more sense for situations where you want to get access to another user’s data (e.g. let’s say that users can bookmark favourite objects and you want to display a visualisation of them). For accessing public data it’s a little overkill. Thankfully the web interface makes it all fairly straightforward.

Ideally, I think it’d be simpler and more developer-friendly not to require API keys at all, and instead to simply allow anyone to retrieve the data with a simple GET request. These can even be tried out in a browser – a common convention is to simply add ‘.json’ on the end of URLs for JSON views. This also lets you use HTTP-level caching, which works at the browser end, the server end and proxies in the middle, keeping things speedy. On the downside, this would make it harder to monitor API usage.

Authentication quibbles aside, once set up I could begin querying the data.

I came to the Cooper-Hewitt knowing very little about the institution other than that it is a design museum. My expectations then were that the collection would be a treasure trove of great design from the past century – things like the Henry vacuum cleaner or the Juicy Salif lemon squeezer by Philippe Starck. In short: ‘design classics‘.

‘Classic’ is a funny word, after abused as a euphemism for old and obsolete, but when applied to design I think it implies quality, innovation, and timelessness – things you might still use today (hence the community around maintaining ‘classic cars’).

My challenge then was to see if, for a given type of thing, I could show the ‘classic’ versions of that thing from the Cooper-Hewitt collection.

To kick off, I looked at the list of ‘types’ in the collection. There are 2,998 of these, and they are for the most part simple & recognisable words or short phrases – things like ‘teapot’ and ‘chair’. The data is a little messy, also including more specific things like ‘side chair’ and ‘teapot and lid’, but, y’know, it’s good enough for now.

I could have retrieved the entire list of types through the API, but as you only get a small bunch at a time, this would have required ‘paging’ through the results with multiple requests. Not too tricky, but rather than coding the logic for this, it was a lot simpler to just import the full list from the CSV dump on GitHub.

The next step was to retrieve a list of objects for each type.

Unfortunately, this didn’t actually seem to be possible using the API (yet). So I went back to GitHub and used the CSV dump of all objects. This contains around a 100,000 objects. Not a huge amount, but with a tip-off from Seb, I realised that I was actually only interested in the objects from the ‘product design’ department – a much smaller list of just 19,848 objects (the rest seem to be mainly drawings and textiles).

With these objects imported, the next step was to match the objects with the types.

This data didn’t seem to be in the CSV file – and it isn’t returned in the API response for object details either (an accidental omission, I think). Stuck, I turned to Seb’s team, and soon learned that what I thought was the object ‘name’ was actually a concatenation of the object’s type and age, separated by a comma. So, I could get an object’s type by simply reversing the process (slight gotcha: remember to ignore case).

At this point I had a database of objects by type, but no images – which for most purposes are pretty crucial.

Ideally, links to the images would’ve been in the CSV dump. Instead, I’d have to query the API for each object and collect the links. Objects can have multiple images, but I only really need the main one, which is designated the ‘primary’ image in the API. Oddly, a good proportion of the objects had no primary image, but did have one or more non-primary images. In these cases, I’d just select the first image.

Script written, I started hitting the API. With 19,848 requests to make, I figured this’d take some time. About a quarter of the way through, I realised that the same data was also available in GitHub, and this could be queried by requesting the ‘raw’ version of the URLs (constructed by splitting the object id into bunches of three digits). So I modified my script to do just that, and set it going, this time starting from the bottom of my list of objects and working up. The GitHub-querying script ran a little faster than the Cooper-Hewitt API (probably not too surprising), and so both scripts ‘met’ somewhere in the middle of the list.

The results of this were that I had images for roughly a quarter of the product design objects, with around 5,000. This seems like quite a lot, but given that lots of these are rather obscure things like ‘matchsafes’, the collection actually isn’t that big, and is rather patchy.

There’s a limit to how many products you can actually collect (and store), of course, and so I’m not suggesting that the museum go on an acquiring spree. But I do wonder whether, to present a good experience online, it might be wise to try and merge in some external product design databases to fill in the holes.

By the time I’d assembled all the data, I didn’t have too much time to consider how to present the ‘classic’ products from among the collection.

Ideally, I think this is something that the museum should expose its expertise in. It can be tempting for museums to pretend that all objects have equal value, but in reality there are always some objects that are considered better, more unique, or in this case ‘more classic’ than others. Museum curators are ideally placed to make these judgement calls (and to explain them). For mass-manufactured design objects, this is arguably more important than collecting them in the first place (it’s unlikely you’d not be able to find an original iPod for an exhibition if you needed one).

Ideas we came up with amongst the team were to try and look up the price of the object on eBay (price isn’t a perfect indicator of design value, but might be a reasonable proxy), or to try and see whether other museums, like the V&A, had also collected the same object.

In the end, I went with a simple crowd-sourcing model. Initially three random objects from each type are picked to be shown as the ‘classic’ ones (3 feels like a good number), with the others shown as smaller thumbnails below. You can then very simply vote objects up or down.

The result of this very simple demo is online at https://designclassics.herokuapp.com – feel free to explore (and vote on the objects).

Thanks to the Cooper-Hewitt for hosting me for the day. I look forward to seeing how the ‘alpha’ collections database develops into the ‘beta’, and then the full launch.

If you are an interaction design or digital humanities student, or just a nerd with a bent for playing with museum collections, and you feel like hanging out for a day or two in the Labs to make things then we’d love to have you over.

Drop us a line and we’ll make it happen.

Patrick Murray-John hacks our collection at #THATcamp

And following Mia’s residency in the Labs we were excited to find out collection data ended up being toyed with at THATCamp.

Patrick Murray-John wrote up his experience with our data, reflecting many of the same issues that Mia cam across.

He calls out our CC0 licensing –

If the data had been available via an API, that would have put a huge burden on my site. I could have grabbed the data for the ‘period’, but to make it useful in my recontextualization of the data, I would have had to grab ALL the data, then normalize it, then display it. And, if I didn’t have the rights to do what I needed, I would have had to do that ON EVERY PAGE DISPLAY. That is, without the licensed rights to manipulate and keep the data as I needed, the site would have churned to a halt.

Instead, I could operate on the data as I needed. Because in a sense I own it. It’s in the public domain, and I have a site that wants to work with it. That means that the data really matters to me, because it is part of my site. So I want to make it better for my own purposes. But, also, since it is in the public domain, any improvements I make for my own purpose can and should go back into the public domain. Hopefully, that will help others. It’s a wonderful, beautiful, feedback loop, no?

As a fork of CC-0 content from github, it sets off a wonderful network of ownership of data, where each node in the network can participate in the happy feedback.

Go read his full post.
